FDC-T711-H408 { 3" x 4" - 5W - 90 dB - 8 Ohm }

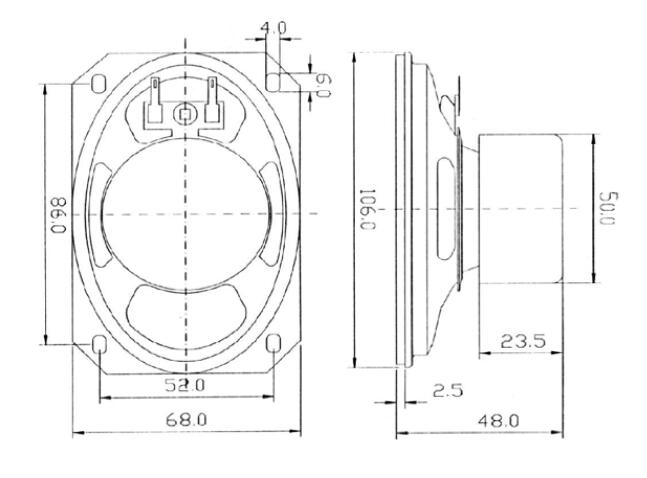

106 x 68 mm (4" x 3") fullrange speaker shieded with double magnet and metal cap
linear frequency response for use in TV,center speakers and everywhere,
where small shielded speakers with good sound are required.

Download data sheet

File name:All Speaker units / File size:322KB


Noes:
106 x 68 mm TV fullrange
cone   : paper
dustcap   : paper
edge   : foam
gasket     paper
noice coil     alu
magnet   : double magnet and metal cap

Terminals:
"+" 2.8 x 0.5 mm
"-"  2.8 x 0.5 mm

Technical data (EN):
nom impedance (Ohm) : 8
nom.power (Watts) : 5
peak SPL (dB) : 92
Sensitivity  (dB) : 90
average SPL (dB) : 86
res.frequency   (Hz) : 150

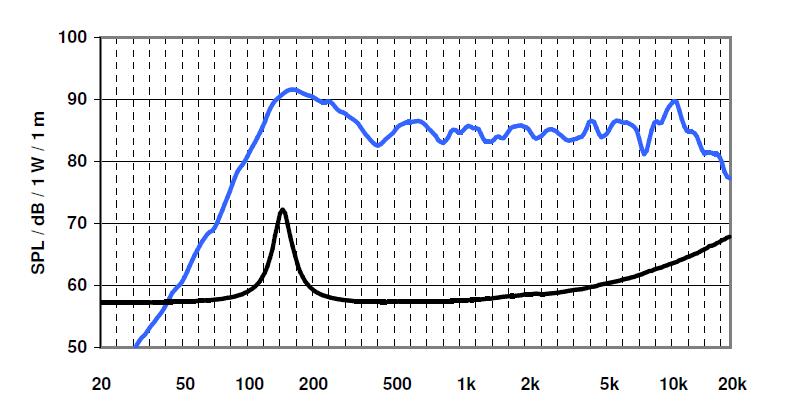

freq.Range (-10dB) (Hz) : 90 to 17900
Xmax +/- (mm) : 1
total weight  (kg) : 0.25
magnet weight (oz) : 4
voice coil ¢ (mm) : 13

Thiele / Small parameter
Re  (Ohm) : 7.0
Qms   : 4.9
Qes   : 1.9
Qts   : 1.3
VAS (Liter) : 1.3
Mms (g) : 0.7
Rms (kg/S) : 0.4
Cms (mm/N) : 0.7
B * L (Tm) : 2.4
Sd (cm²) : 38
Le (mH) : 0.17
