FDC-HF15B { 15" - 200W - 90 dB - 8 Ohm }

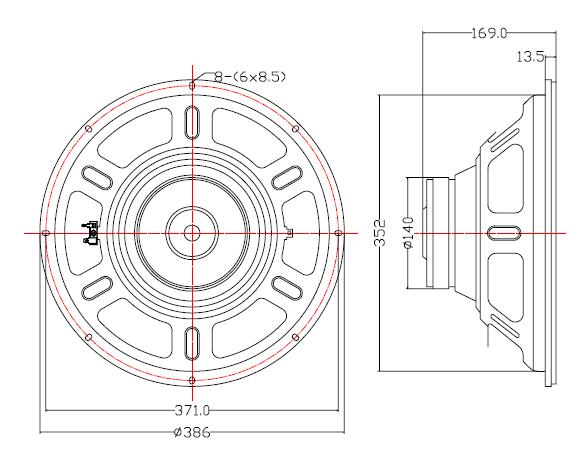

386 mm (15") woofer with air-dried cone and pressure vented pole piece. Can be fitted at front or rear. Excellent value for money coupled with very good power-handling capabilities. Particularly suitable as a replacement for HiFi speakers.

Download data sheet

File name:HiFi units / File size:52.1KB





Fs    (Hz) : 21
Re  (Ohm) : 6.8
Sd  (sqmt) : 0.082
Qms   : 3.85
Qes   : 0.45
Qts   : 0.41
Vas  (it) : 345.21
Mms  (gr) : 161.27
BI  (T/m) : 16.87
Xmax  (mm) : 5
Hvc  (mm) : 18
Hag  (mm) : 8
