66 mm (2.5") fullrange speaker with high SPL output and linear frequency response.
For use in speaker columns,constructions for ceilings,alarm systems for music and speech.
File name:HiFi units / File size:325KB
Noes: | |||

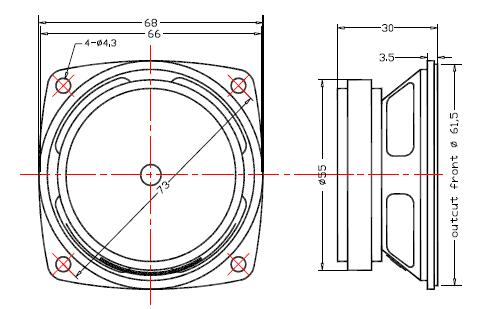

66 mm fullrange | |||
cone | : | paper | |
dustcap | : | paper | |
edge | : | treated cloth | |
gasket | treated paper | ||
noice coil | paper | ||
magnet | : | ferrit | |
Terminals: | |||
"+" 2.8 x 0.5 mm | |||
"-" 2.8 x 0.5 mm | |||
Technical data (EN): | |||
nom impedance | (Ohm) | : | 8 |
nom.power | (Watts) | : | 6 |
peak SPL | (dB) | : | 92 |
Sensitivity | (dB) | : | 86 |
average SPL | (dB) | : | 86 |
res.frequency | (Hz) | : | 280 |

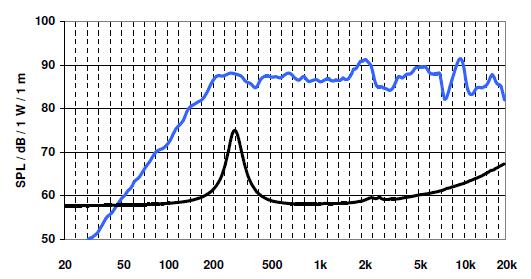

freq.Range (-10dB) | (Hz) | : | 120 to 20000 |
Xmax +/- | (mm) | : | 1 |
total weight | (kg) | : | 0.19 |
magnet weight | (oz) | : | 2 |
voice coil ¢ | (mm) | : | 13 |
Thiele / Small parameter | |||
Re | (Ohm) | : | 7.5 |
Qms | : | 3.1 | |
Qes | : | 1.5 | |
Qts | : | 1.0 | |
VAS | (Liter) | : | 0.3 |
Mms | (g) | : | 0.7 |
Rms | (kg/S) | : | 0.45 |
Cms | (mm/N) | : | 0.45 |
B * L | (Tm) | : | 2.4 |
Sd | (cm²) | : | 23 |
Le | (mH) | : | 0.01 |
