FDC-SW10J-H4014 { 10" - 150W - 91 dB - 8 Ohm }

250 mm (10") woofer with air-dried cone and pressure vented pole piece. Can be fitted at front or rear. Excellent value for money coupled with very good power-handling capabilities. Particularly suitable as a replacement for HiFi speakers or Car subwoofer.

Download data sheet

File name:Automotive units / File size:381KB

Noes:
250 mm high power woofer
oil coated paper cone and dust cap
rubber edge
foam gasket

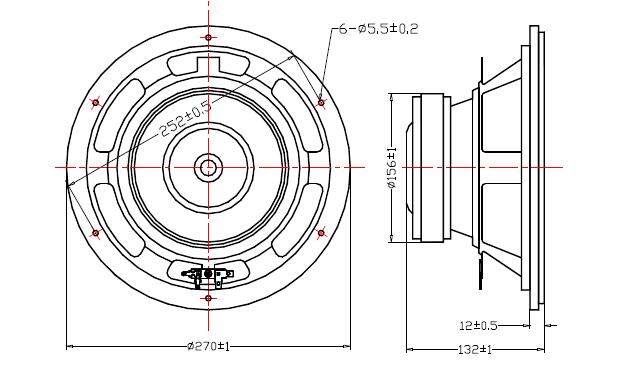

outcut ¢ 230 mm

Terminals:
"+" 4.8 x 0.8 mm
"-"  2.8 x 0.8 mm

impedance (Ohm) : 4/8
nom.power (Watts) : 150

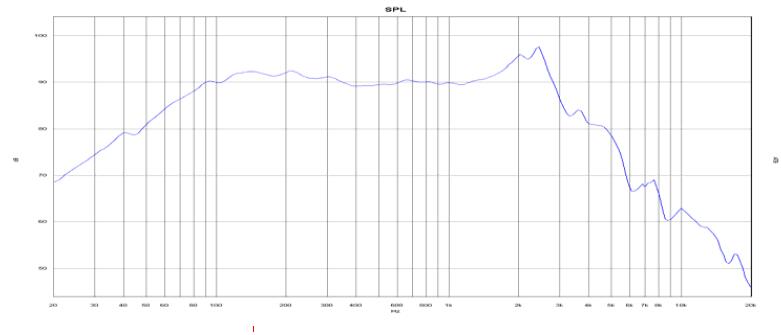

SPL 1W/1m (dB) : 91.5
fs (Hz) : 40
Re  (Ohm) : 3.3/7.4
Le (mH) : 0.9
Qms   : 5.4
Qes   : 0.36
Qts   : 0.3
VAS (Liter) : 50
Mms (g) : 52.0
Rms (kg/S) : 2.66
Cms (mm/N) : 0.3
B * L (Tm) : 10.6
Sd (cm²) : 346
Xmax +/- (mm) : 4
