FDC-C402-1 { 4" - 20W - 89 dB - 4 Ohm }

100 mm (4") 2-way coaxial speakers with 100 mm paper cone and mylar dome tweeter.
Integrated crossover (capacitor) for the tweeter. Very balanced sound.

Download data sheet

File name:Automotive units / File size:133KB

Notes:

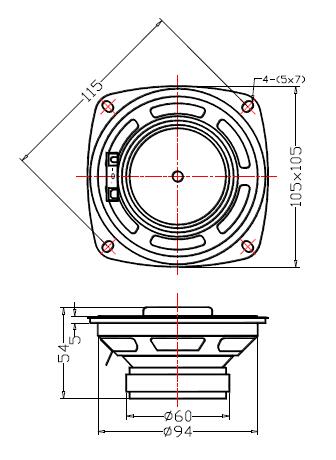

105 x 105 mm full frequency range soeaker,
Foam edge paper cone,
magnet: Φ60 x 24 x 10 mm

Nominal impedance (Ohm) : 4
Voice coil resistance (Ohm) : 3.2
Nominal power (Watts) : 20
Sensitivity  1W/1m  (dB) : 89

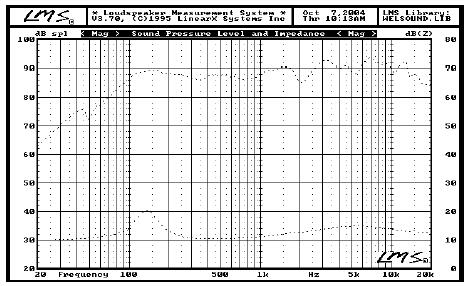

Frequency range  (Hz) : 140 - 20000
Free air resonance (Hz) : 140
Voice coil diameter  (mm) : 20.4
Voice coil height (mm) : 16
Air gap height (mm) : 4
Voice coil inductance (mH) : ---
Eff.diaphragm Area (cm²) : ---
Moving mass (g) : ---
Magnet Weight  (oz) : 114 / 4.1
Force factor (BI)   2.04
VAS (I)   2.94
Qms   : 2.83
Qes   : 1.58
Qts   : 1.01
