FDC-YDD713-1 { 5" x 3" - 5W - 88 dB - 8 Ohm }

77 x 125 cm (3" x 5") fullrange driver with with good efficiency and balanced frequency response with a clear highrange reproduction. Applicable as built-in speaker in Car with very small mounting space.

Download data sheet

File name:Automotive units / File size:54.5KB

Notes:

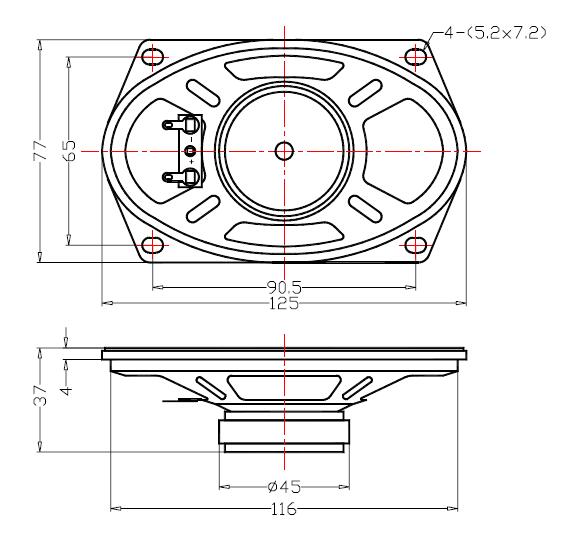

77 x 125 mm full frequency range soeaker,
paper cone,
magnet: Φ45 x 22 x 8 mm

Nominal impedance (Ohm) : 8
Voice coil resistance (Ohm) : 8
Nominal power (Watts) : 5
Sensitivity  1W/1m  (dB) : 88

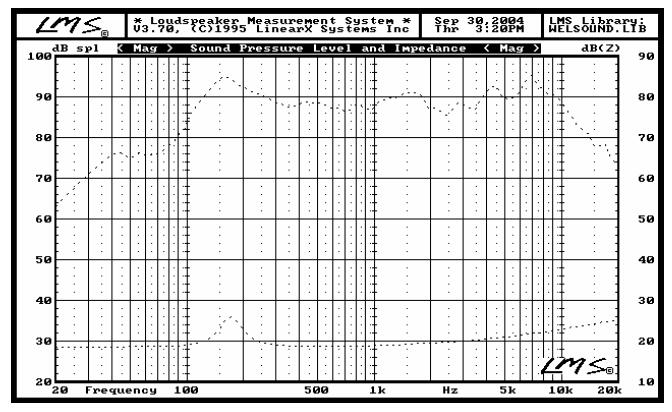

Frequency range  (Hz) : 190 - 15000
Free air resonance (Hz) : 190
Voice coil diameter  (mm) : 14.28
Voice coil height (mm) : 11
Air gap height (mm) : 3
Voice coil inductance (mH) : ---
Eff.diaphragm Area (cm²) : ---
Moving mass (g) : ---
Magnet Weight  (oz) : 48 / 1.7
Force factor (BI)   2.12
VAS (I)   2.87
Qms   : 3.44
Qes   : 2.28
Qts   : 1.37
