FDC-T813-5 { 5" x 3" - 10W - 88 dB - 8 Ohm }

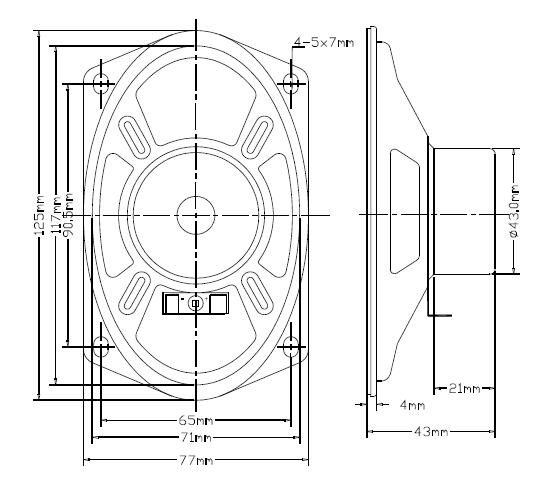

77 x 125 cm (3" x 5") fullrange driver with a Magnetically shielded, good efficiency and a very balanced frequency response. The FDC-T813-5 can furthermore be used as replacement part for internal TV speakers and car speakers.

Download data sheet

File name:HiFi units / File size:338KB

Description   : Full Range Speaker
Size  (in) : 5 x 3
Nominal Diameter  (mm) : 200
Standard Impedance  (Ohm) : 8
Power RMS  (Watts) : 5
Power Program  (Watts) : 10
Sensitivity  1W/1m  (dB) : 88
Frequency Range  (Hz) : 200 - 12000
Basket Material   : Stamped steel
Cone Material   : Paper
Spider Material   : Paper
Magnet Material   : Ferrite
Magnet Weight  (oz) : 1.35 / 0.65
Voice Coil Material   : Lock
Former Material    : Aluminium
Voice Coil Diameter  (mm) : 14.28



Fs    (Hz) : 200
Re  (Ohm) : 7.6
Sd  (sqmt) : /
Qms   : /
Qes   : /
Qts   : /
Vas  (it) : /
Mms  (gr) : /
BI  (T/m) : /
Xmax  (mm) : 0.2
Hvc  (mm) : 3.4
Hag  (mm) : 3.0
